Heavy duty tripod turnstile ZOJE-S906
ZOJE-S906® heavy duty tripod turnstile is an attractive tripod turnstile. It is reliable and efficient for the automation of secure entrance control.
The cabinet will offer enough space for all mechanical and electronic components integrating with a wide range of access control system, such as coin collector, paper ticket collector, IC / ID / RFID / HID card reader, QR code scanner, fingerprint, face recognition and other biometric modules.
This can be indoors or outdoors and withstand severe environment. Can effectively prevent trailing, popular used for Widely used in ticketing places such as tourist attractions.
ZOJE® Tripod turnstiles are compact and cost-effective entrance solutions.The body is made of brushed stainless steel 304 or 316 which is robust, rigid, anti-rust and durable.
In case of emergency, the turnstile arm will drop down to allow free passage when power off.
We are also professional customize as your idea or project. Contract with our sales get a professional and suitable solution for you.

Product Parameter (Specification)

StandardOptional
Turnstile TypeHeavy duty Tripod Turnstile-

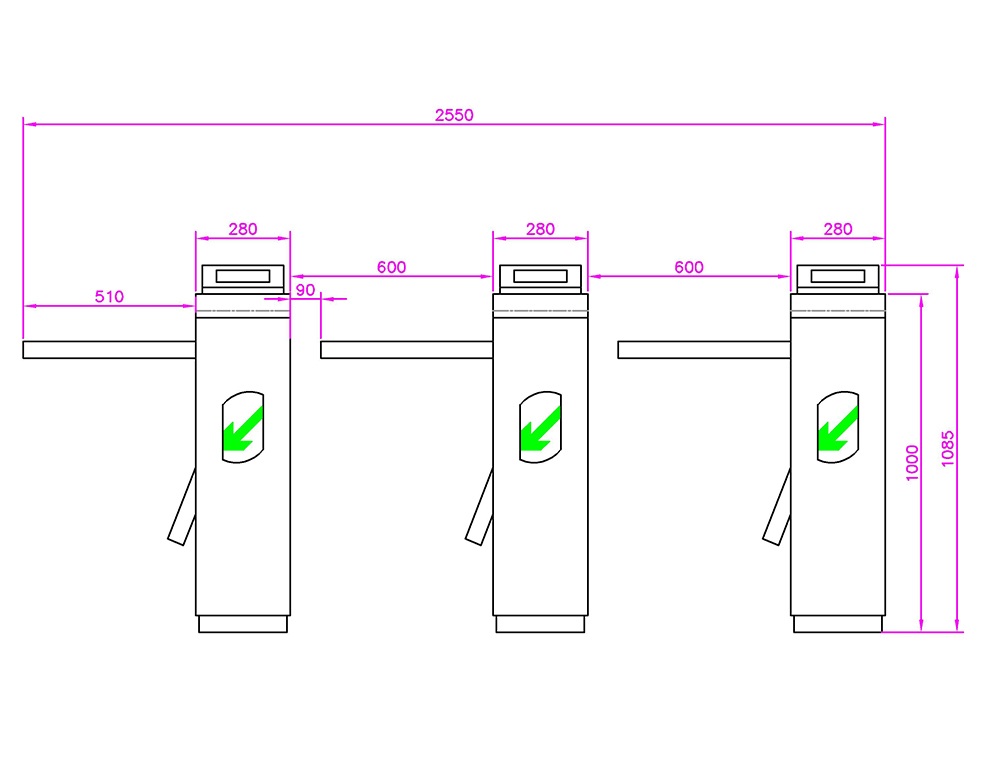

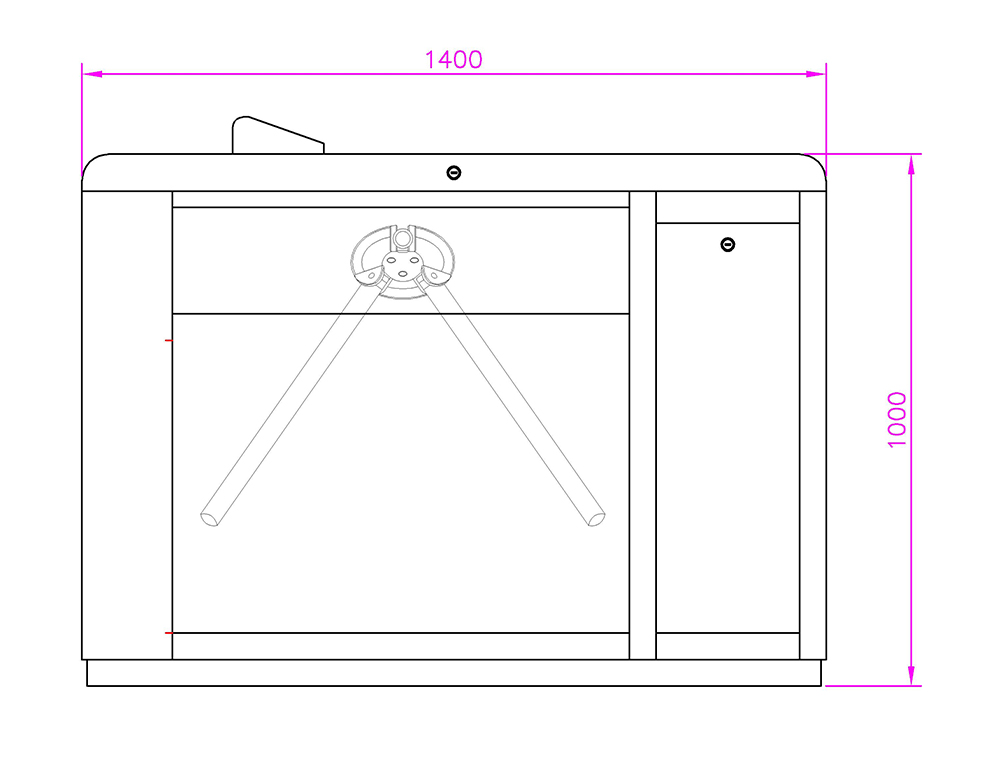

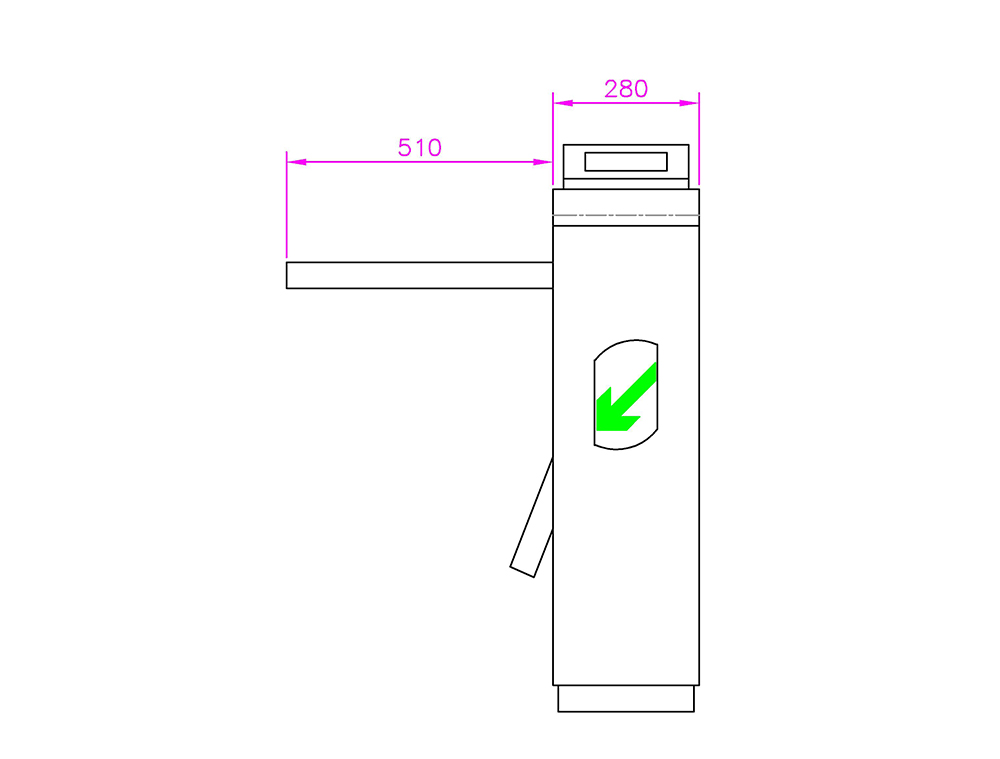

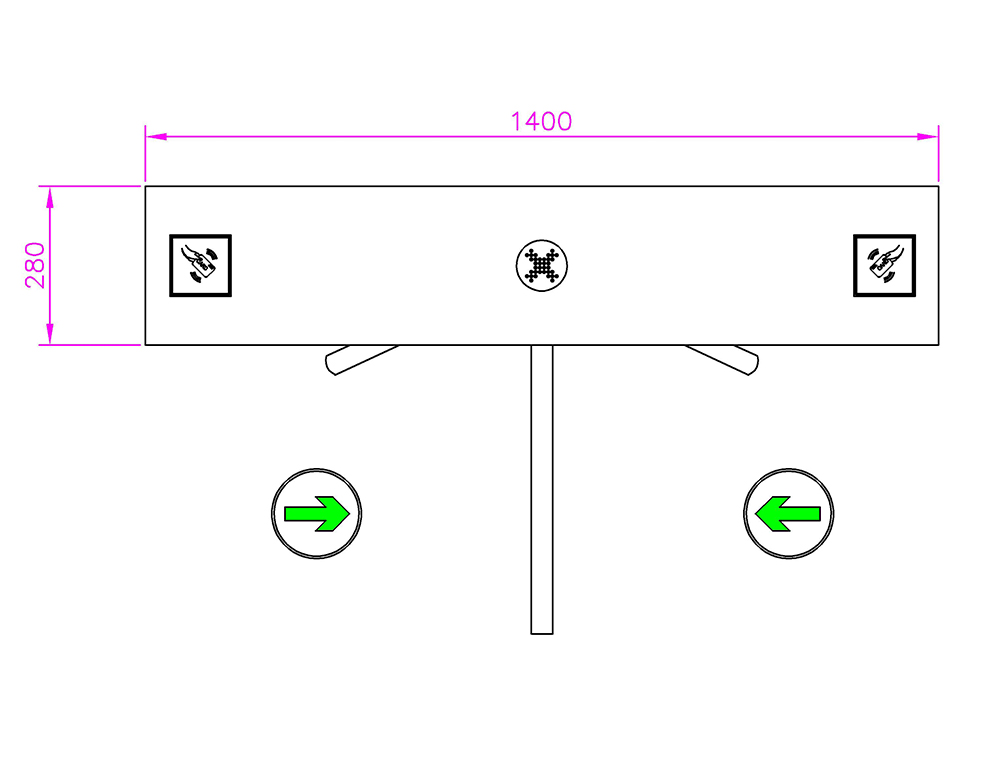

DimensionL1400mm*W280mm*H1000mmCustomized
Material304 Stainless Steel316 Stainless Steel
Material Thickness1.5mm1.2mm/1.5mm/2.0mm
Channel Width≤500mmCustomized
Drive TypeSemi-Automatic(Solenoid)Automatic(Brush/Brushless/Servo motor）
DirectionSingle / Bidirectional-
Power SupplyAC110-230,50/60Hz-
Unlock time0.2S-
FunctionFail safe-
Operation VoltageDC24V,3A-
Working environmentIndoor & outdoor-
Working Temperature-70 C -15 C-
Relative HumidityLess Than 95%, No Condensation-
Pass Speed35/Minute-
Input InterfaceDry contact/Relay Signal-
Communication InterfaceRS485/TCPIP-
LED IndicatorYes-
EmergencyArm Drop Automatic-
Access ControlCan be integrated with any kind of access control system.-

Product Feature And Application

ZOJE Heavy Duty Tripod Turnstile Feature and application

●Unique technology: HDY hydraulic buffer device. Makes the system run more smoothly, silently, and has a longer service life.
●Equipment With Power Off The Rod, Electric Automatic Rod Function
●The Equipment Has A Device And Circuit Testing Function, Easy Maintenance
●Equipment With Traffic Indicator
●Equipment With Automatic Protection, Automatic Reset
●Unified standard external electrical interface, which can be connected with various reading and writing devices(ID Card / IC Card /EMcard / Fingerprint Face Recognition / QR Code / ESD system)
●ZOJE Tripod Turnstiles widely used in Construction Sites (Employee Access Management System), Scenic Spots (Ticketing System), Gym (Ticketing System) and other places, and can be easily integrated with your existing control software.
